Brand: Aeromotive
Manufacturer's Part Number: 18092
Part Type: Fuel Pumps
Product Line: Aeromotive Phantom Direct-Fit Fuel Pumps
Automotive Fittings Part Number: AEI-18092
UPC: 684980013139
Fuel Pump Type: Electric In-tank
Flow Rate: 250 gph/946 lph
Fuel Pressure (psi): 90 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Outlet Size: -8 AN O-ring
Outlet Quantity: 2
Outlet Attachment: Female straight cut O-ring
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: No
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Utilizes OEM Tank, Lock Ring, and Gasket
Description:

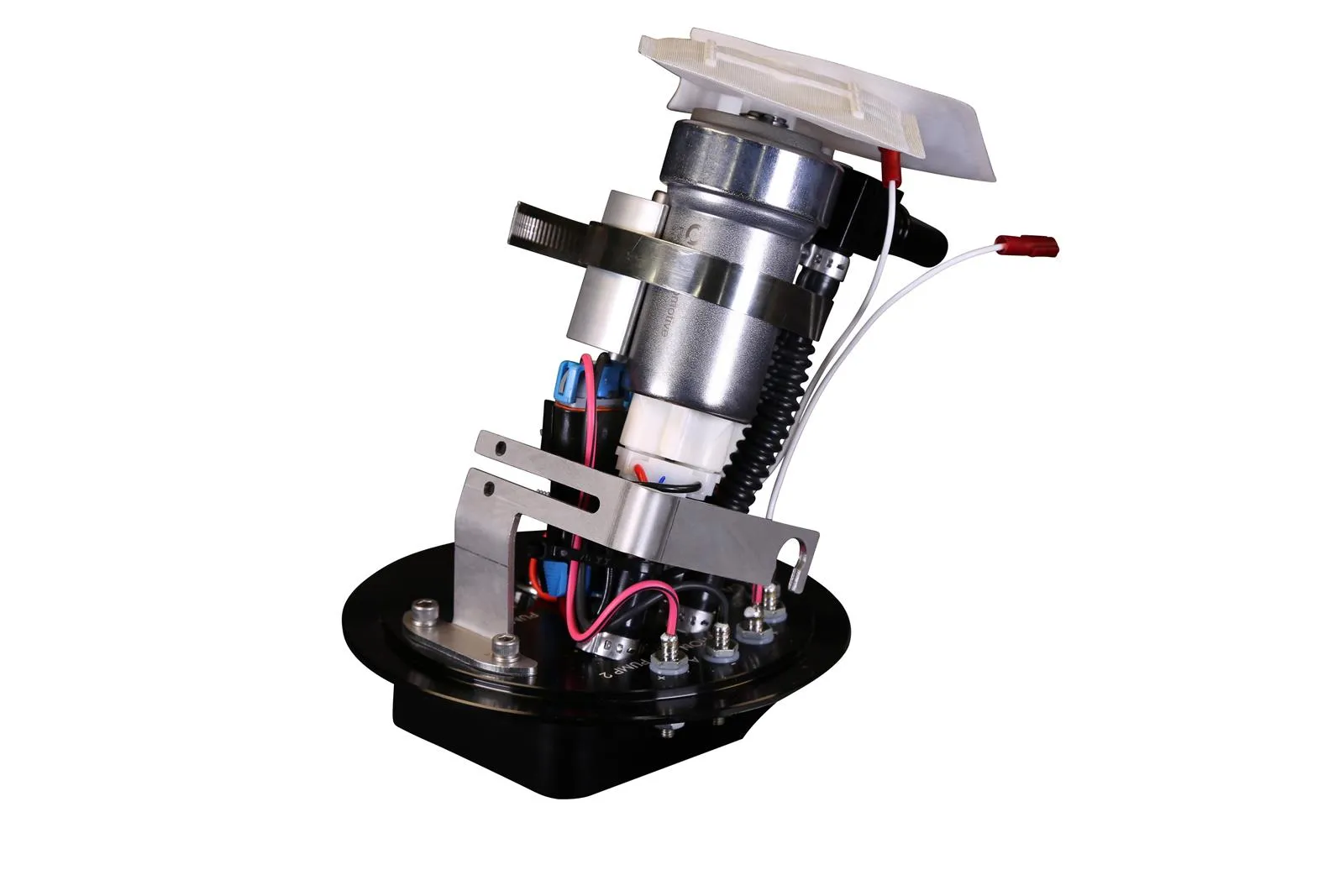

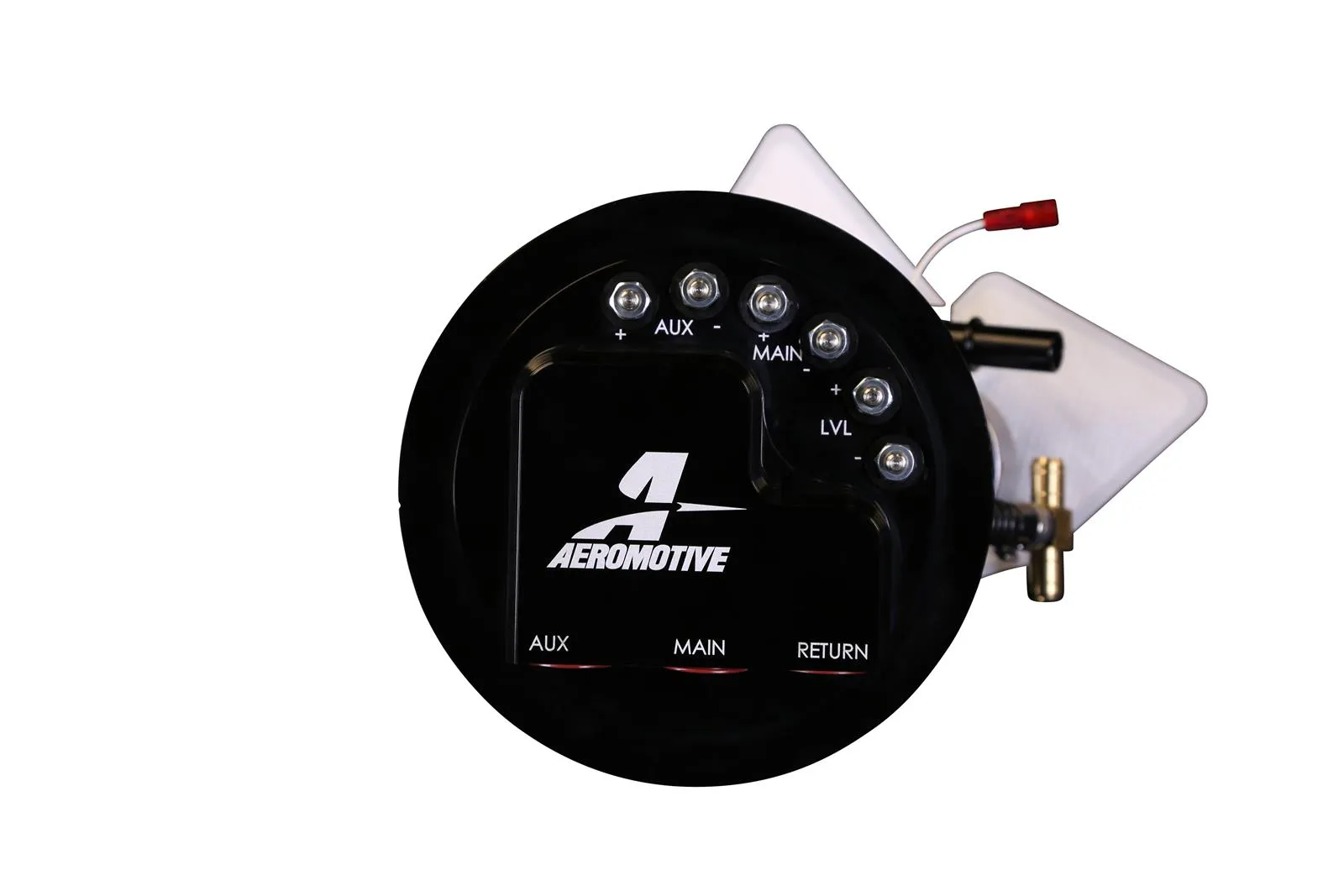

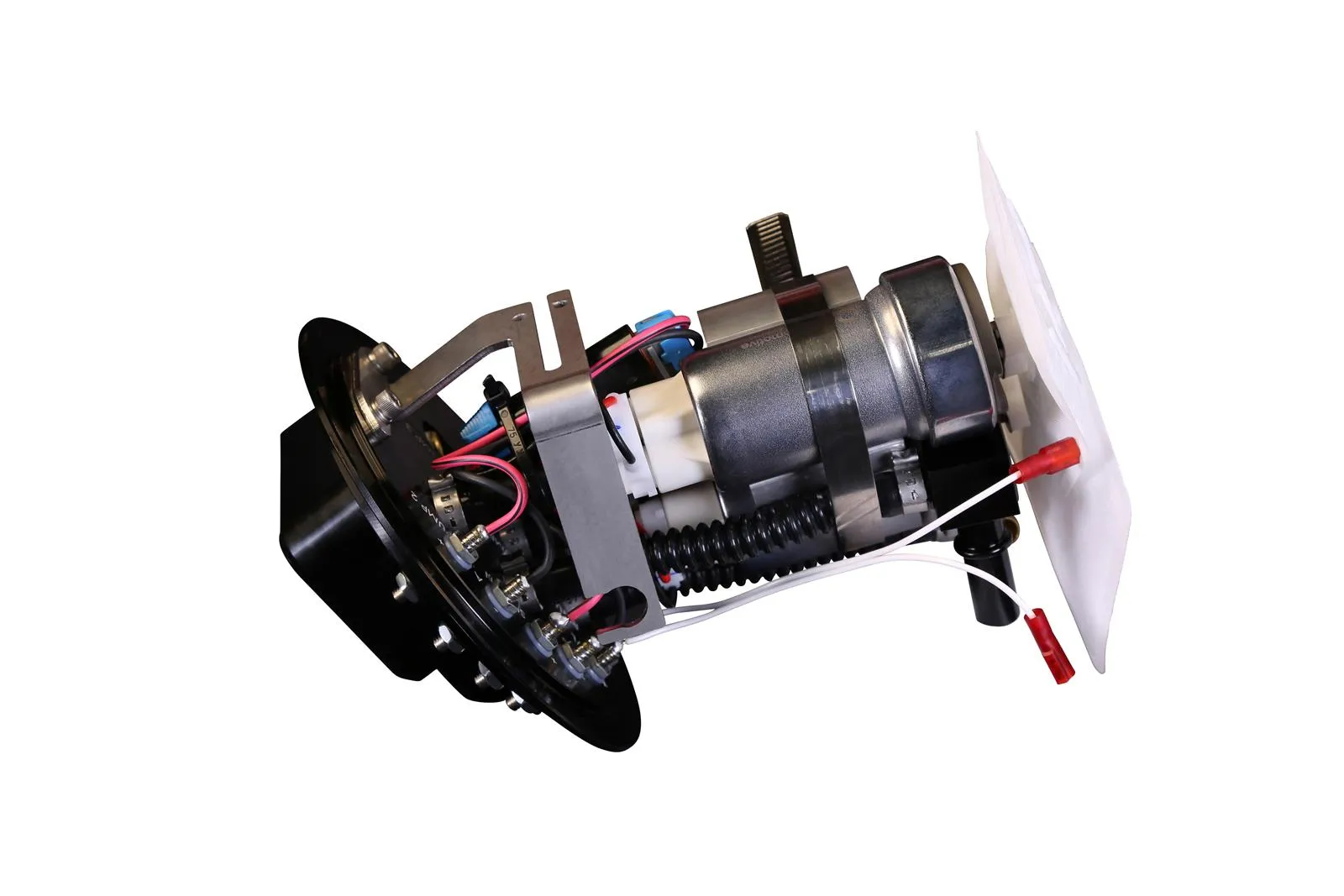

Aeromotive Phantom direct-fit fuel pumps are drop-in systems engineered for your late model truck. They're available in five pump sizes, from single 340 lph to triple 450 lph. Designed to work with plastic fuel tanks, Phantom Series pumps cover a range of GM truck models spanning decades. The 1999-2004 models used a smaller factory fuel sending unit than the later 2005-17 models. The smaller size unit limits the pump configurations that this tank will accommodate. Aeromotive Phantom direct-fit fuel pump systems are also compatible with different tank depths.
